EMC/RFI Filters for Industrial Electronics
- Excellent filter performance for applications with high interference levels
- Filters for two-phase supply up to 2x 520 VAC (P-P) available
- Fast and comfortable snap-in installation on popular TS 35 DIN-rails up to 45 A
- Industrial grade terminal blocks for unsurpassed electrical safety
Features and Benefits
FN 2410 filters up to 100 A are designed for traditional chassis mounting
Typical Applications
Small to medium-sized machines and industrial equipment
Technical Specifications
Maximum continuous operating voltage
2x 520/300 VAC (FN 2410 H/FN 2412 H)
1x 250 VAC (FN 2410/FN 2412)
Protection category
IP 20
Overload capability
4x rated current at switch on,
1.5x rated current for 1 minute, once per hour
Temperature range (operation and storage)
-25°C to +100°C (25/100/21)
Flammability corresponding to
UL 94 V-2 or better
Design corresponding to
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
Operating frequency
DC to 400 Hz
Rated currents
8 to 45 A @ 50°C (FN 2412)
8 to 100 A @ 50°C (FN 2410)
High potential test voltage
P –> P 2250 VDC for 2 sec (H types)
P –> E 2000 VAC for 2 sec
P –> N 1100 VDC for 2 sec
P –> E 2700 VDC for 2 sec (H types)

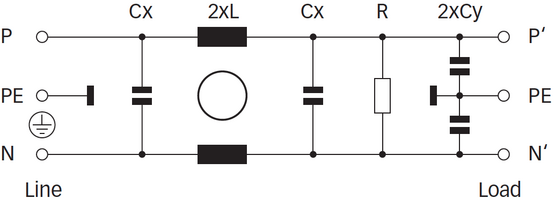

Typical electrical schematic
Approvals & Compliances
