共模抑制扼流圈
- 额定电流高达5 A
- 4种不同的尺寸
- 宽频带衰减特性
- 低漏磁通量
- UL额定材料
- 符合RoHS标准
。
Features and Benefits
额定电流高达5 A
Typical Applications
开关电源的输入滤波器
Technical Specifications
Maximum continuous operating voltage
250 VAC @ 50°C
Operating frequency
DC to 400 Hz
Resistance
Tolerance max. ±15% @ 25°C
≤20 mΩ, 1 A
>20 mΩ ≤200 mΩ, 100 mA
>200 mΩ ≤2 V, 10 mA
Electrical characteristics
@ 25°C ±2°C
Rated currents
0.3 to 5 A
Rated inductance
0.5 to 90 MILLIHENRY
Overcurrent
1.5x Inominal for 1 minute, once per hour
Temperature range (operation and storage)
-25°C to +100°C (25/100/21)
Flammability corresponding to
UL 94 V-0
Measuring frequency
10 kHz
5 mA <16 μH
500 μA >16 μH <160 μH
50 μA >160 μH >16 mH
50 mV >16 mH <160 mH
Inductance tolerance ±30%

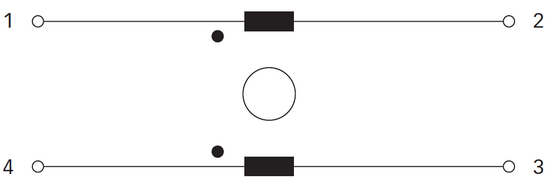

Typical electrical schematic
