Product Overview

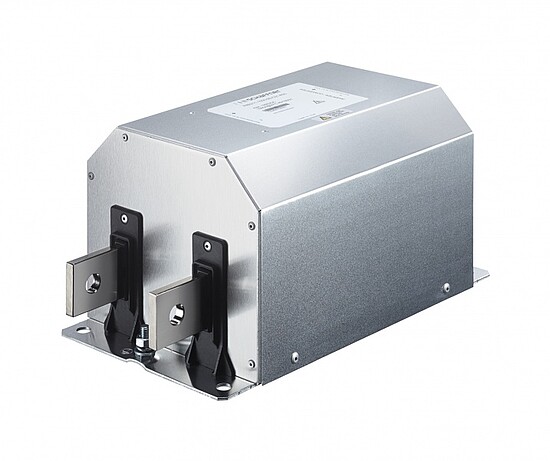

紧凑型大电流直流EMC/EMI滤波器
- 减少对太阳能电池板的传导辐射
- 减少太阳能电池板上的EMI辐射概率
- 有助于防止电池板过早老化
- 有助于满足国际EMC法规
- 业界最紧凑的标准解决方案
- FN2210 HV不含对地Cy电容
Articles
| Article | Rated Current @ambient | Power Loss | Input/Output connections (Nm) | Distribution stock | Compare | Read More | ||
|---|---|---|---|---|---|---|---|---|
| Input terminal | Output terminal | |||||||
 | FN2210HV-1000-99-R9 | 1000 | 31 | Category 1 | 99 - special / busbar | |||
Features and Benefits
安装在光伏逆变器和太阳能电池板之间的FN 2211 HV和FN 2210 HV直流滤波器用于降低系统中直流侧的传导发射。因此，直流滤波器大大减少了直流侧的高频（HF）干扰辐射的可能性。滤波器还有助于防止因高频杂散电流和泄漏电流而导致的面板过早老化。
Typical Applications
FN 2211 HV/FN 2210 HV系列主要为250和2'300 A之间的光伏逆变器应用而设计。然而，它们也有可能在公布的规格范围内应用于其他直流应用，如UPS、直流电机驱动、能源/电池存储系统或直流充电器装置。
Technical Specifications
Maximum continuous operating voltage
1'500 VDC
Operating frequency
DC
Flammability corresponding to
UL 94V-0
Design corresponding to
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939,
EN 60721-3, EN 62109
MTBF @ Rated amb. Temp./Voltage (Mil-HB-217F)
> 200,000 hours
Rated currents
250 to 2300 A @50°C
High potential test voltage
P -> E 6'800 VDC for 2 sec
P -> P 3'850 VDC for 2 sec
Protection category
IP 00
Overload capability
4x rated current at switch on, max. 8 sec 1.5x rated current for 1 minute, once per hour -40°C
Temperature range (operation and storage)
to +100°C
Climatic category
40/100/21 acc. to IEC 60068-1
Terminals/Housing
Ni plated cu bars/Metal

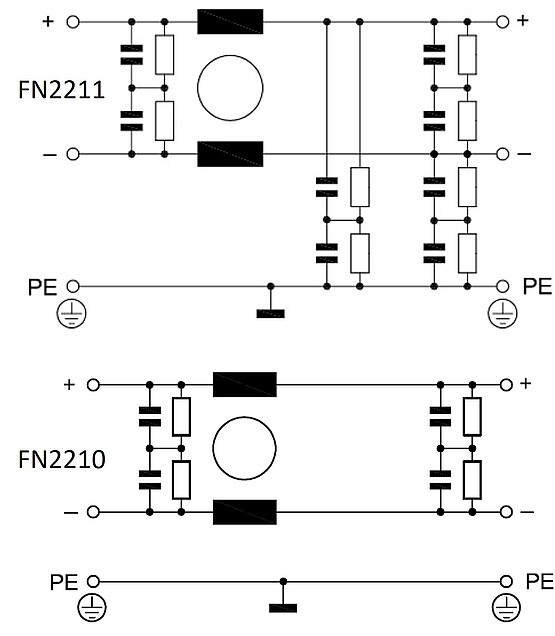

Typical electrical schematic
