最小漏电电流的DIN导轨式EMC/RFI滤波器
- 紧凑的最先进的滤波器概念
- 轻量级塑料外壳设计
- 最小化的过滤器泄漏电流
- 铰链式安全盖
- 革命性的嵌入式滤波器器端子
- 机箱或DIN导轨安装选项
- 可选择的性能水平
- 环保设计，无灌封胶
。
Features and Benefits
两种不同的安装版本。FN 3025用于机箱安装，FN3026用于DIN导轨安装
Typical Applications
需要极其紧凑的滤波器解决方案的应用
Technical Specifications
Maximum continuous operating voltage
3x 520/300 VAC
Operating frequency
DC to 60 Hz
Temperature range (operation and storage)
-25°C to +100°C (25/100/21)
Flammability corresponding to
UL 94 V-2 or better
Design corresponding to
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
Rated currents
10 to 50 A @ 50°C
High potential test voltage
P –> E 2000 VAC for 2 sec (HL types)
P –> E 3000 VDC for 2 sec (HP types)
P –> P 2250 VDC for 2 sec
Protection category
IP 00 (protection according to VBG 4)
Overload capability
4x rated current at switch on,
1.5x rated current for 1 minute, once per hour

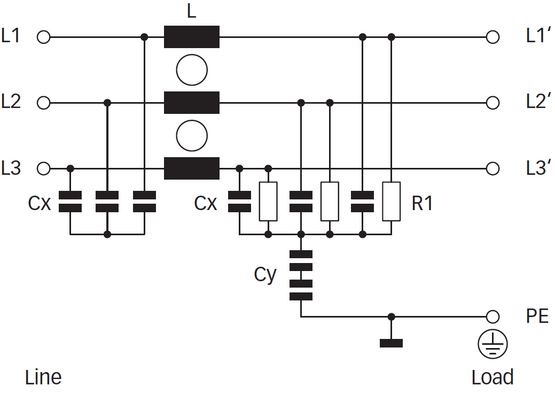

Typical electrical schematic
Approvals & Compliances
Design protected by European patent (EP 1727280)
