大电流EMC/RFI滤波器
- 常备的大功率滤波器，额定电流高达2500A
- 适用于IT电源网络的HV版本
- 用于方便和通用电气连接的母线
- 可选择提供保护性塑料盖，以获得无与伦比的安全性
。
Features and Benefits
高功率过滤器符合A类标准。在某些应用中，安规测量也可以达到B级标准
Typical Applications
大功率电机驱动器、变频器和转换器
* 对于没有电隔离的光伏系统的EMI解决方案，请联系您当地的夏弗纳合作伙伴
。Technical Specifications
Maximum continuous operating voltage
3x 760/440 VAC (FN 3359 HV)
3x 520/300 VAC (FN 3359)
Protection category
IP 00
Overload capability
4x rated current at switch on,
1.5x rated current for 1 minute, once per hour
Temperature range (operation and storage)
-25°C to +100°C (25/100/21)
Flammability corresponding to
UL 94 V-2 or better
Design corresponding to
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
Operating frequency
DC to 60 Hz
Rated currents
150 to 2500 A @ 50°C
High potential test voltage
P –> P 3270 VDC for 2 sec (FN 3359 HV)
P –> E 2750 VDC for 2 sec (FN 3359)
P –> P 2250 VDC for 2 sec (FN 3359)
P –> E 3200 VDC for 2 sec (FN 3359 HV)

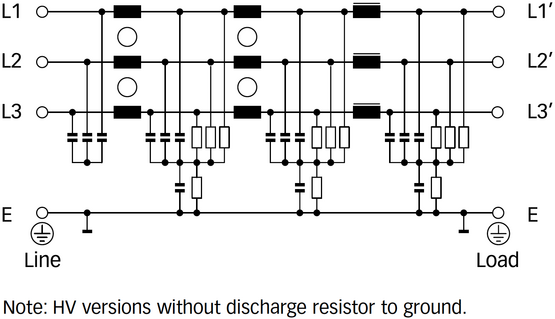

Typical electrical schematic
Approvals & Compliances
UL: 600/400 VAC for 1600A and 2500A @ 40 °C ambient temp.; ENEC up to 1600A: 690/400 VAC
