多用途滤波电源接入模块
- 额定电流高达10A
- 用于一个或两个保险丝
- 保险丝 Ã6.3 x 32 mm 或 Ã5 x 20 mm
- 2极摇杆开关
- 电压选择器
- 可选接地线扼流圈（E型） </ul
Features and Benefits
Typical Applications
Technical Specifications
Maximum continuous operating voltage
250 VAC, 50/60 Hz
Operating frequency
DC to 400 Hz
Fuse holder
1 or 2 fuses (Ø5 x 20 mm) (certified to IEC 60127-6), power acceptance 1.6W @ Ta 23°C per pole for 2 fuses. 2.5W, if only 1 pole is used.
Function
2-pole, dark not illuminated Marking I - 0
Mechanical life
50,000 cycles
Electrical specifications
Inrush current 51 A
6,000 on-off operations according to UL 1054, TV 5
10,000 on-off operations according to ENEC
Switch ratings

USA (UL) and Canada (C-UL)
10 A, 125 VAC
10 A, 250 VAC
1/3 HP
Rated currents
1 to 10 A @ 40°C max.
Europe (ENEC)
10 A (4 A), 250 VAC*
High potential test voltage
P –> PE 2000 VAC for 2 sec
P –> N 760 VAC for 2 sec
Protection category
IP 40 according to IEC 60529
Design corresponding to
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
Temperature range (operation and storage)
-25°C to +85°C (25/85/21)
Flammability corresponding to
UL 94V-2 or better
Function
Series/parallel
Marking I - 0
Voltage selector description

Voltage marking

Series
110-120 V
Parallel
220-240 V
Rocker switch description

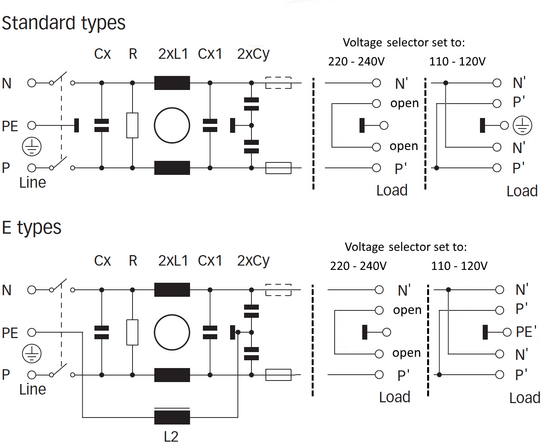

Typical electrical schematic
