PCB安装的滤波器
- 额定电流为0.5至10A
- 紧凑的PCB安装设计
- 低矮的外形
。
Features and Benefits
良好的传导衰减性能，基于具有高饱和磁阻和优异热性能的扼流圈
Typical Applications
电气和电子设备
Technical Specifications
Maximum continuous operating voltage
250 VAC, 50/60 Hz
Operating frequency
DC to 400 Hz
Rated currents
0.5 to 10 A @ 40°C max.
High potential test voltage
P –> PE 2000 VAC for 2 sec
P –> N 760 VAC for 2 sec
Temperature range (operation and storage)
-25°C to +100°C (25/100/21)
Design corresponding to
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
Flammability corresponding to
UL 94 V-0

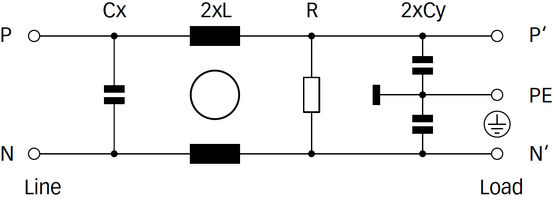

Typical electrical schematic
