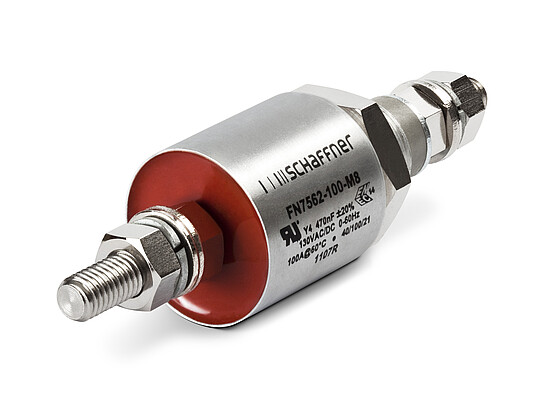

直流馈通电容器
- EN/IEC 60384-14 认证
- 额定电流为 10 至 200 A
- 2.5 kV 脉冲测试能力
- Y4 级电容器
<
Features and Benefits
非常低的内部串联电感
Typical Applications
用于48VDC电池电源的电源线过滤器
Technical Specifications
Maximum continuous operating voltage
130 DC (UL, ENEC)
130 VAC, 50/60 Hz (UL, ENEC)
650 VDC max
Rated currents
10 to 200 A @ 60°C max.
Capacitor class
Y4
High potential test voltage
1700 VDC for 2 sec
Insulation resistance (100VDC after 60 sec)
<0.33 μF, R >1500 MΩ
>0.33 μF, τ >5000 s
Temperature range (operation and storage)
-40°C to +100°C (40/100/21)
Flammability corresponding to
UL 94 V-2 or better
Typical electrical schematic
