带熔断器的通用电源输入模块
- 额定电流高达10A
- 集成了单/双保险丝座
- 可选择降低泄漏电流的版本（A/B型）
- 符合IEC/EN 60601-1
- 卡入式版本（S型）
- 良好的衰减性能
- 新：导线选项
。
Features and Benefits
卓越的传导衰减性能，基于具有高饱和磁阻和出色热性能的扼流圈
Typical Applications
便携式电气和电子设备
Technical Specifications
Maximum continuous operating voltage
250 VAC, 50/60 Hz
Operating frequency
DC to 400 Hz
Fuse holder
1 or 2 fuses (Ø5 x 20 mm) (certified to IEC 60127-6), power acceptance 1.6W @ Ta 23°C per pole for 2 fuses. 2.5W, if only 1 pole is used.
Rated currents
1 to 10 A @ 40°C max
High potential test voltage
P –> PE 2000 VAC for 2 sec (standard types)
P –> PE 2500 VAC for 2 sec (B types)
P –> N 760 VAC for 2 sec
Protection category
IP 40 according to IEC 60529
Temperature range (operation and storage)
-25°C to +85°C (25/85/21)
Design corresponding to
UL 60939-3, CSA Std C22.2 No. 8-13, IEC/EN 60939-3, GB/T15287, GB/T15288
Flammability corresponding to
Fuseholder plastic: UL 94 V-0
Inlet plastic: UL 94 V-0
Fuseholder plastic: UL 94 V-0

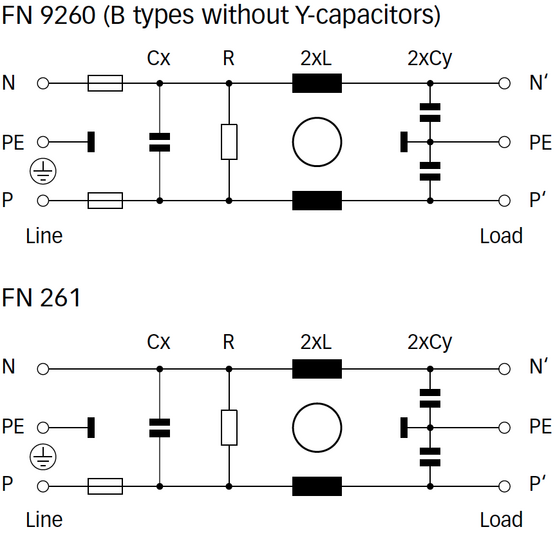

Typical electrical schematic
