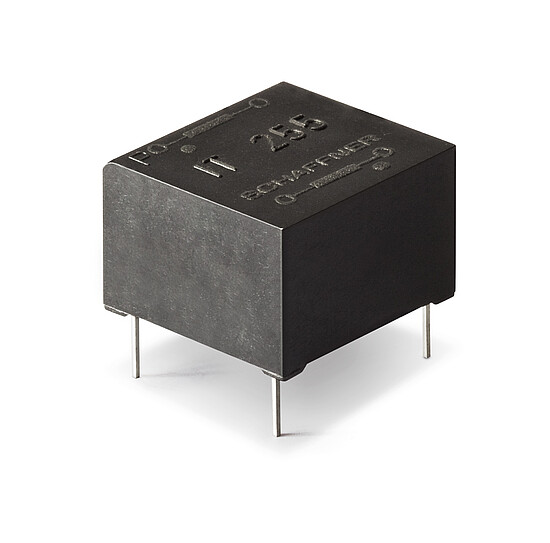

单一次级绕组的脉冲变压器
- 驱动和电源电路隔离
- 耐压高达8kV
- 点火电流高达3A
- 匝数比高达3:1
。
Features and Benefits
电路隔离
Typical Applications
门驱动电路
Technical Specifications
Nominal operating voltage
Up to 3000 V
Flammability corresponding to
UL 94 V-0 listed materials
Operating frequency
40 kHz max.
DC to 40000 Hz
500 kHz max. for data transmission
DC to 40000 Hz
Ignition currents
0.1 to 3 A @ 40°C
Rise time
0.3 to 2.3 µs
Test voltage
Up/50 Hz/2 s max. according to VDE 110b
Max. partial discharge voltage
1.5 x Unom
Temperature range (operation and storage)
-25°C to +70°C (25/70/21)
