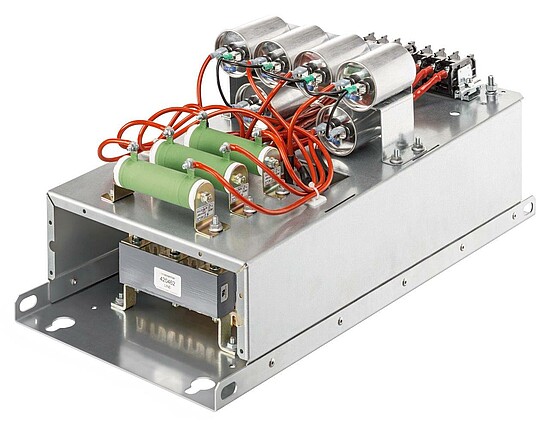

用于有能量回收反馈的电机驱动的LCL滤波器
- 用于AFE/AIC应用的线侧LCL滤波
- 将AFE/AIC系统连接到电网的必要接口
- 帮助改善电网侧的电能质量
- 减少纹波电流和电压失真
- 所有LCL元件都在一个封装内
- 设计紧凑，可随时连接
。
Features and Benefits
提高AFE（有源前端）/AIC（有源输入转换器）的电能质量
Typical Applications
升降机和起重机
Technical Specifications
Nominal operating voltage
3 x 380...480 VAC
Rated operating voltage
3 × 340...530 VAC
Switching frequency fPWM
min. 3 kHz up to max. 10 kHz
Rated currents
25A @ 50°C available
Other current ratings on request
25A @ 50°C available
Rated inductance L2 (inverter/converter side)
8% @ 400V, 50 Hz and rated current
Rated inductance L1 (grid/line side)
4% @ 400V, 50 Hz and rated current
Overload capability
1.6 x rated current for 1 min., ones per hour
Protection category
IP00 (IP20 on request)
Ambient temperature range
-25°C to +50°C full operation
>50°C to 70°C derated operation
-25°C to 85°C storage and transportation
Nominal line frequency
50/60 Hz
Insulation class
EIS 200
Flammability corresponding to
UL 94 V-0
Design corresponding to
Filter: UL61800-5-1, EN61800-5-1
Chokes: EN61558-2-20 or EN60076-6
Creepage and clearance distances
According UL 61800-5-1
* 注意：关于详细的结果纹波电流，请联系您当地的夏弗纳办事处或合作伙伴。
* Note: for detailed resulting ripple current, please contact your local Schaffner office or partner.
