Product Overview
共模电感
- 额定电流为6至64A
- 高达600VAC或850VDC
- 直流至400Hz频率
- 双、三和四扼流圈的配置
<
Features and Benefits
高耐饱和性和卓越的热性能
Typical Applications
与饱和扼流圈结合的相位控制电路
Technical Specifications
Maximum continuous operating voltage
600 VAC/850 VDC @ 40°C
Operating frequency
DC to 400 Hz
Rated inductance
0.2 to 25 MILLIHENRY
Rated currents
6 to 64 A @ 40°C max.
High potential test voltage

winding-to-winding
2500 V, 50 Hz, 2 sec, factory test
2500 VAC, 60 sec, guaranteed
winding-to-housing
4000 VAC, 60 sec, guaranteed
Surge current @ 10 msec
20 x I<sub>N</sub> @ 25 °C
Temperature range (operation and storage)
-25°C to +110°C (25/110/21)
Flammability corresponding to
UL 94 V-0 (insulation tubes UL 94 V-2)

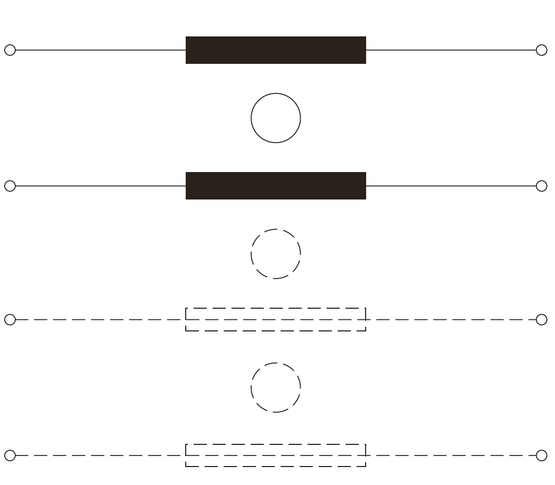

Typical electrical schematic
