饱和扼流圈
- 额定电流为1.5至25A
- 高达500VAC的工作电压
- 直流至1kHz的频率
- 单或双扼流圈配置
<
Features and Benefits
卓越的热性能
Typical Applications
抑制快速开关电路产生的高干扰水平
Technical Specifications
Maximum continuous operating voltage
500 VAC @ 40°C
Rated currents
1.5 to 25 A
High potential test voltage

and/or winding-to-inserts
2500 V, 50 Hz, 2 sec, factory test
Surge current @ 10 msec
20 x IN @ 25°C
Temperature range (operation and storage)
-25°C to +110°C (25/110/21)
Flammability corresponding to
UL 94 V-0

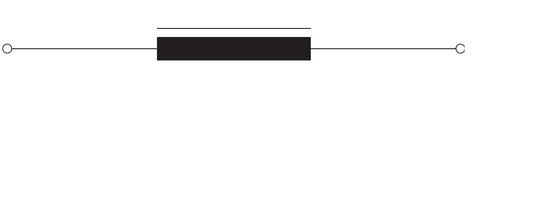

Typical electrical schematic
