Product Overview
共模电感
- 额定电流为0.3至10 A
- 直流至400 Hz频率
- 100 kHz至3 MHz共模谐振频率
- 双电感配置
- 多种PCB安装选项 </ul
Features and Benefits
高饱和磁阻和出色的热性能
Typical Applications
开关模式电源应用
Technical Specifications
Operating voltage
300 VAC
Operating frequency
DC to 400 Hz
Rated currents
0.3 to 10 A
0.3 to 10 A @ rated ambient temperature
Rated inductance
0.4 to 100 MILLIHENRY
0.4 to 100 mH
Stray inductance
Typically 1% of L<sub>N</sub>
Inductance reduction (DC bias with IN)
Less than 10% (25°C)
Surge current @ 10 msec
20 x I<sub>N</sub> @ 25°C
Temperature range (operation and storage)
-40°C to 100°C (40/100/56)
acc. IEC 60068-1
Flammability corresponding to
Housing UL 94V-0
Potting compound UL 94V-0
Ringcore coating UL 94V-0
Design corresponding to
UL 1283, IEC/EN 60938-1
Frequency (DC)
1 kHz

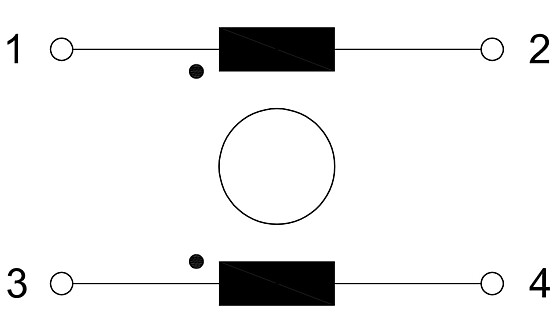

Typical electrical schematic
Approvals & Compliances
