Multi-stage High Performance AC/DC EMI Filter

Rated currents from 1 to 16 A
High differential and common-mode attenuation
Good low frequency attenuation
Optional medical versions (B type)
Optional safety versions (A type)

Articles

Article	Rated Current @ambient	Leakage current IEC60939	Power Loss	Inductance		Capacitance		Resistance	Input/Output connections (Nm)		Distribution stock	Compare	Read More
Article	Rated Current @ambient	Leakage current IEC60939	Power Loss	L1	L2	Cx1 (µF)	Cy1 (nF)	Resistance	Input terminal	Output terminal	Distribution stock	Compare	Read More
FN2080-10-06	10	0.66	8.6	4.5	60	1	4.7	220	53 - STB16 16mm2	APAC
FN2080-10-07	10	0.66	8.6	4.5	60	1	4.7	220	56 - JTB M8 screw terminal	Partner
FN2080-10-08	10	0.66	8.6	4.5	60	1	4.7	220	61 - M4 screw terminal block	Representative
FN2080-1-06	1	0.66	2.6	22	490	0.33	4.7	1000	53 - STB16 16mm2	APAC
FN2080-1-07	1	0.66	2.6	22	490	0.33	4.7	1000	56 - JTB M8 screw terminal	Partner
FN2080-12-06	12	0.66	12.3	3.25	50	1	4.7	220	53 - STB16 16mm2	APAC
FN2080-12-07	12	0.66	12.3	3.25	50	1	4.7	220	56 - JTB M8 screw terminal	Partner
FN2080-12-08	12	0.66	12.3	3.25	50	1	4.7	220	61 - M4 screw terminal block	Representative
FN2080-16-06	16	0.66	9	2.8	43	1	4.7	220	53 - STB16 16mm2	APAC
FN2080-16-07	16	0.66	9	2.8	43	1	4.7	220	56 - JTB M8 screw terminal	Partner
FN2080-16-08	16	0.66	9	2.8	43	1	4.7	220	61 - M4 screw terminal block	Representative
FN2080-3-06	3	0.66	3.7	9.8	160	0.47	4.7	470	53 - STB16 16mm2	APAC
FN2080-3-07	3	0.66	3.7	9.8	160	0.47	4.7	470	56 - JTB M8 screw terminal	Partner
FN2080-6-06	6	0.66	5.7	7.8	110	1	4.7	220	53 - STB16 16mm2	APAC
FN2080-6-07	6	0.66	5.7	7.8	110	1	4.7	220	56 - JTB M8 screw terminal	Partner
FN2080A-10-06	10	0.07	8.6	4.5	60	1	4.7	220	53 - STB16 16mm2	APAC
FN2080A-16-06	16	0.07	9	2.8	43	1	4.7	220	53 - STB16 16mm2	APAC
FN2080A-16-07	16	0.07	9	2.8	43	1	4.7	220	56 - JTB M8 screw terminal	Partner
FN2080A-16-08	16	0.07	9	2.8	43	1	4.7	220	61 - M4 screw terminal block	Representative
FN2080A-3-06	3	0.07	3.7	9.8	160	0.47	0.47	470	53 - STB16 16mm2	APAC
FN2080A-6-06	6	0.07	5.7	7.8	110	1	0.47	220	53 - STB16 16mm2	APAC
FN2080B-10-06	10	0	8.6	4.5	60	1		220	53 - STB16 16mm2	APAC
FN2080B-1-06	1	0	2.6	22	490	0.33		1000	53 - STB16 16mm2	APAC
FN2080B-12-06	12	0	12.3	3.25	50	1		220	53 - STB16 16mm2	APAC
FN2080B-16-06	16	0	9	2.8	43	1		220	53 - STB16 16mm2	APAC
FN2080B-16-08	16	0	9	2.8	43	1		220	61 - M4 screw terminal block	Representative
FN2080B-3-06	3	0	3.7	9.8	160	0.47		470	53 - STB16 16mm2	APAC
FN2080B-6-06	6	0	5.7	7.8	110	1		220	53 - STB16 16mm2	APAC
FN2080M-16-06	16	3.69						220	53 - STB16 16mm2	APAC

Features and Benefits

FN 2080 two-stage filters are designed for easy and fast chassis mounting

FN 2080 B versions without capacitors to earth comply to 1MOP for ME (medical equipment) acc. IEC 60601-1

FN 2808 A version with low capacitance to earth for safety critical applications with necessity for low leakage currents

All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior

FN 2080 two-stage filters are designed with good low frequency attenuation

FN 2080 filters are also available as single- stage filters

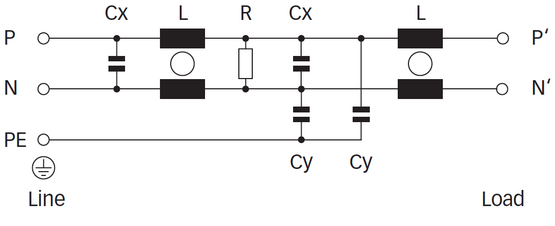

FN 2080 filters are also available with two common mode choke configuration (FN 2070 series)

Various terminal options allow you to select the desired connection style

Typical Applications

Electrical and electronic equipment

Lighting applications (due to high differential mode inductance)

Consumer goods

Household equipment

Building automation

Industrial applications

Machinery

Medical equipment

Electronic data processing equipment

Office automation and datacom equipment

Various noisy applications requiering good filter performance

Technical Specifications

Rated voltage*

250 VAC, 50/60 Hz

250 VDC

Operating frequency

DC to 400 Hz

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)**

Certified to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to AC and DC applications)

Flammability corresponding to

Laces for -07 version: UL 94 VW-1

Terminal plastic for -06/-08 version: UL 94 V-0

Grommet for -07 version: UL 94 V-0

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

Overvoltage category

II acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Altitude

2000m (above derating applies)**

Rated currents

1 to 16 A @ 40°C max

High potential test voltage

P –> PE 2000 VAC for 2 sec

P –> PE 2500 VAC for 2 sec (B types)

P –> N 1100 VDC for 2 sec

* maximum RMS operating voltage at rated frequency or the maximum DC operating voltage ** for dedicated requests exceeding this specification (e.g. -40 °C or higher altitude) please contact your local Schaffner Sales office
