多用途滤波电源接入模块
- 额定电流高达6 A
- 单或双保险丝座
- 保险丝 Ã6.3 x 32 mm Ã5 x 20 mm
- 2极摇杆开关
- 一般用途
- 可选的医疗版本（B型）
<
Features and Benefits
良好的传导衰减性能，基于具有高饱和磁阻和优异热性能的扼流圈
Typical Applications
便携式电气和电子设备
Technical Specifications
Maximum continuous operating voltage
250 VAC, 50/60 Hz
Operating frequency
50 to 400 Hz
DC to 400 Hz
Protection category
IP 40 according to IEC 60529
Temperature range (operation and storage)
-25°C to +85°C (25/85/21)
Design corresponding to
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
Flammability corresponding to
UL 94 V-2 or better
Function
2-pole, dark not illuminated
Marking I - 0
Electrical specifications
Inrush current 51 A
6,000 on-off operations according to UL 1054, TV 5
10,000 on-off operations according to ENEC
Mechanical life
50,000 cycles
Switch ratings

Europe (ENEC)
6 A (4 A), 250 VAC*
USA (UL)
6 A, 125 VAC
4 A, 250 VAC
1/10 HP
Canada (CSA)
6 A, 125 VAC
4 A, 250 VAC
1/10 HP
Rated currents
2 to 6 A @ 40°C max
High potential test voltage
P –> PE 2000 VAC for 2 sec (standard types)
P –> PE 2500 VAC for 2 sec (B types)
P –> N 760 VAC for 2 sec
* ()中的数值与电感电流电荷有关：cos(phi) = 0.65
* Value in () relates to the inductive current charge: cos(phi) = 0.65

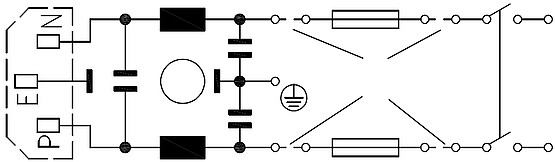

Typical electrical schematic
